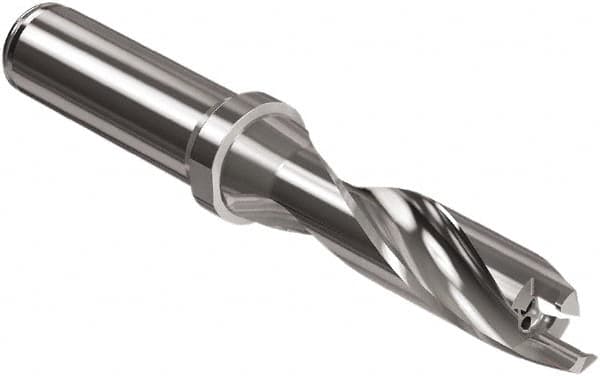

Seco - 12 to 12.49mm Diam, 3xD, 38mm Max Depth, 5/8" Shank Diam, 1.819" Flute, 4.181" OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 42719682
Brand: Seco
Model #: 40078
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.4961 |
| Maximum Drill Depth (mm) | 38.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 1.8190 |
| Body Length (Decimal Inch) | 2.2910 |
| Overall Length (Decimal Inch) | 4.1810 |
| Shank Length (Decimal Inch) | 1.8900 |
