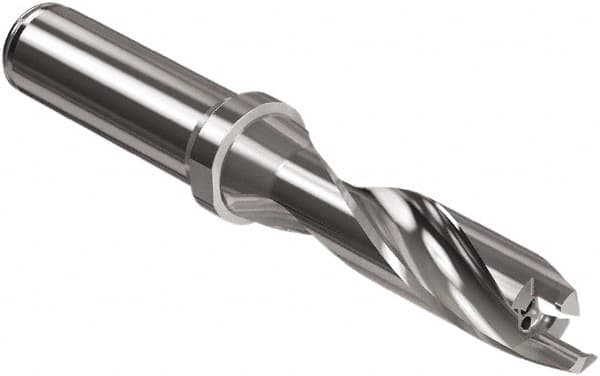

Seco - 13 to 13.99mm Diam, 3xD, 42mm Max Depth, 16mm Shank Diam, 50.9mm Flute, 111.9mm OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 42719781
Brand: Seco
Model #: 39861
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.6535 |
| Maximum Drill Depth (mm) | 42.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 50.90 |
| Flute Length (Decimal Inch) | 2.0039 |
| Body Length (mm) | 63.90 |
| Body Length (Decimal Inch) | 2.5157 |
| Overall Length (mm) | 111.90 |
| Overall Length (Decimal Inch) | 4.4055 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
