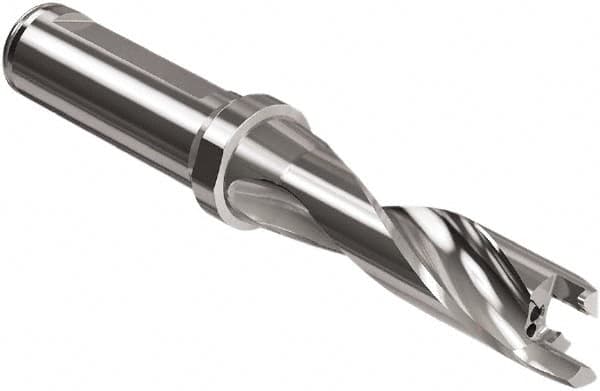

Seco - 19 to 19.99mm Diam, 3xD, 60mm Max Depth, 3/4" Shank Diam, 2-7/8" Flute, 5.591" OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 42719864
Brand: Seco
Model #: 39896
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.3622 |
| Maximum Drill Depth (mm) | 60.00 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 2.8740 |
| Body Length (Decimal Inch) | 3.6220 |
| Overall Length (Decimal Inch) | 5.5910 |
| Shank Length (Decimal Inch) | 1.9690 |
