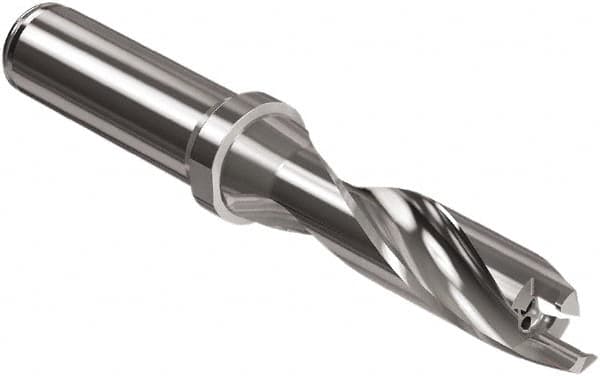

Seco - 19 to 19.99mm Diam, 3xD, 60mm Max Depth, 20mm Shank Diam, 73mm Flute, 142mm OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 42719872
Brand: Seco
Model #: 39876
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.3622 |
| Maximum Drill Depth (mm) | 60.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 73.00 |
| Flute Length (Decimal Inch) | 2.8740 |
| Body Length (mm) | 92.00 |
| Body Length (Decimal Inch) | 3.6220 |
| Overall Length (mm) | 142.00 |
| Overall Length (Decimal Inch) | 5.5905 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
