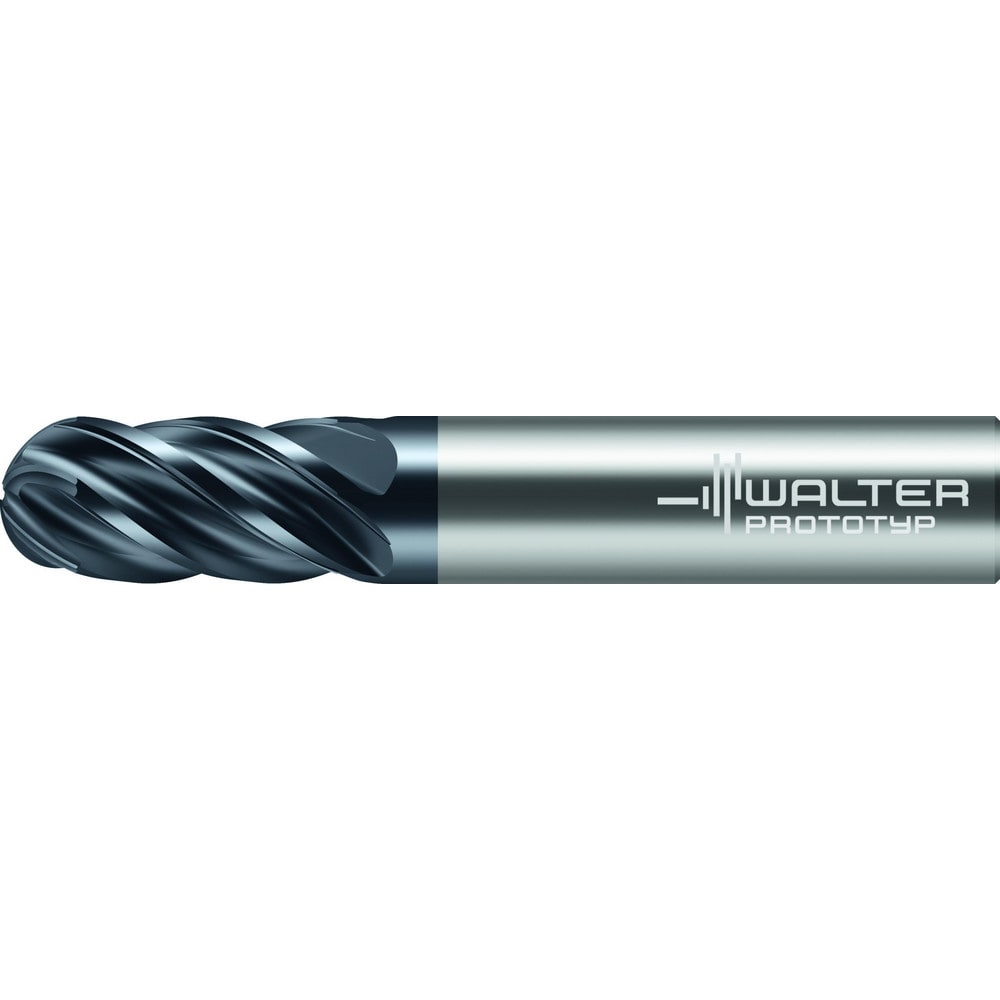

Ball End Mill: 1/4" Dia, 3/8" LOC, 5 Flute, Solid Carbide
Item #: 07162563
Brand: Walter-Prototyp
Model #: 8418572
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/8 |
| Coating/Finish | nACo |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | Yes |
| Variable Helix | Yes |
| Variable Index | No |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Extended |
| Helix Style | Variable |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Nose Radius (Decimal Inch) | 0.1250 |
| Neck Length (Decimal Inch) | 2.5230 |
| Reach Length (Decimal Inch) | 2.8980 |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Material Grade | WJ30EM |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | MA477 |
| Flute Type | Spiral |
| UNSPSC Code | 23241614 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Close |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Manufacturers Catalog Number | MA477.6.35A5X-WJ30EM |
| System Of Measurement | Fractional Inch |
