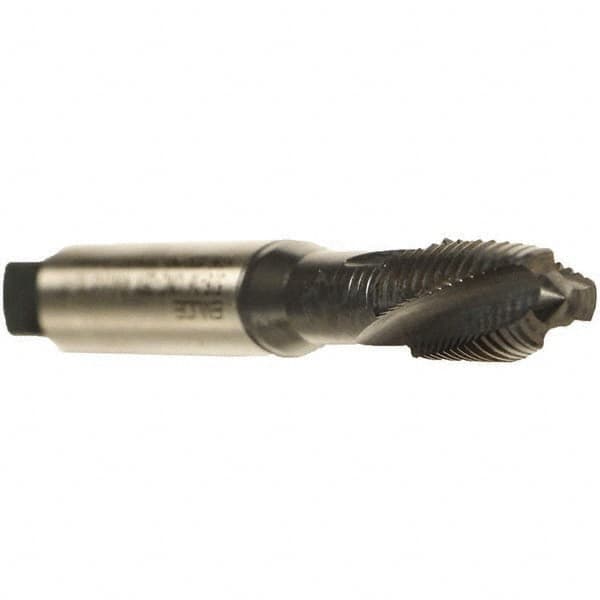

Emuge - #5-40 UNC 2 Flute 2BX Plug Spiral Flute Tap - Cobalt, Oxide Finish, 1-15/16" OAL, Left Hand Flute, Right Hand Thread, Series Rekord C
Item #: 42746057
Brand: Emuge
Model #: AU306001.5004
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #5-40 |
| Chamfer | Plug |
| Class of Fit | 2BX |
| Number of Flutes | 2 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.9375 |
| Overall Length (Inch) | 1-15/16 |
| Helix Angle | 15 |
| Thread Standard | UNC |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.4330 |
| Flute Type | Slow Spiral |
| Series/List | Rekord C |
| Tapping Depth (Decimal Inch) | 0.7090 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Length (Decimal Inch) | 1.2310 |
