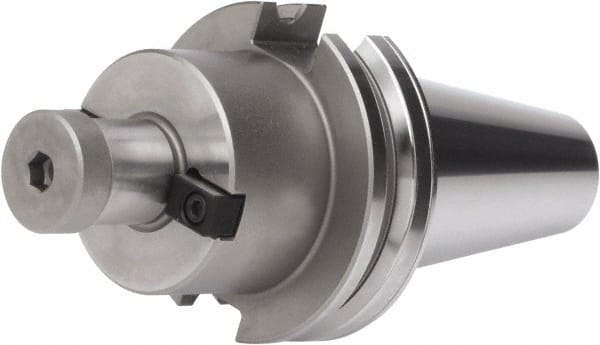

Accupro - CAT50 Dual Contact Taper Shank 1" Pilot Diam Shell Mill Holder - 6" Flange to Nose End Projection, 2-3/4" Nose Diam, 1/2-20 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 42826677
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | CAT50 |
| Pilot Diameter (mm) | 25.40 |
| Pilot Diameter (Inch) | 1 |
| Pilot Diameter (Decimal Inch) | 1.0000 |
| Projection Flange to Nose End (Inch) | 6 |
| Projection Flange to Nose End (mm) | 152.40 |
| Projection Flange to Nose End (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 69.85 |
| Nose Diameter (Inch) | 2-3/4 |
| Nose Diameter (Decimal Inch) | 2.7500 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Balanced to (RPM) | 10000 |
| Shell Mill Cutting Diameter Range (Inch) | 2-1/4 - 2-3/4 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | 1/2-20 |
