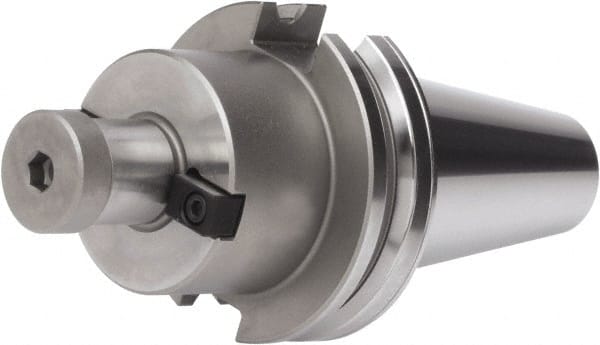

Accupro - CAT40 Dual Contact Taper Shank 1-1/2" Pilot Diam Shell Mill Holder - 4" Flange to Nose End Projection, 96.52mm Nose Diam, 3/4-16 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 42826685
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | CAT40 |
| Pilot Diameter (mm) | 38.10 |
| Pilot Diameter (Inch) | 1-1/2 |
| Pilot Diameter (Decimal Inch) | 1.5000 |
| Projection Flange to Nose End (Inch) | 4 |
| Projection Flange to Nose End (mm) | 101.60 |
| Projection Flange to Nose End (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 96.52 |
| Nose Diameter (Decimal Inch) | 3.8000 |
| Overall Length (mm) | 169.84 |
| Overall Length (Inch) | 6-11/16 |
| Overall Length (Decimal Inch) | 6.6870 |
| Balanced to (RPM) | 10000 |
| Shell Mill Cutting Diameter Range (Inch) | 4 - 5 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | 3/4-16 |
