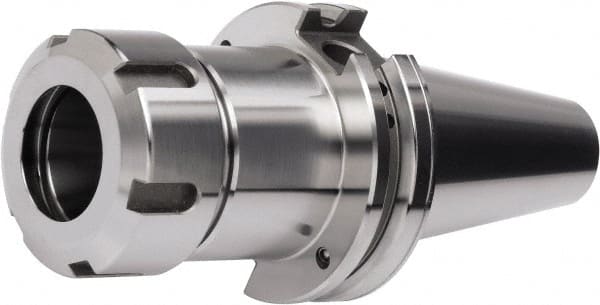

Accupro - 0.5mm to 10mm Capacity, 6" Projection, CAT50 Dual Contact Taper, ER16 Collet Chuck - 10" OAL
Item #: 42831982
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Dual Contact Taper |
| Taper Size | CAT50 |
| Projection (Inch) | 6 |
| Projection (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0190 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3930 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2600 |
| Maximum RPM | 25000 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.2600 |
| Collet Nut Diameter (mm) | 32.00 |
