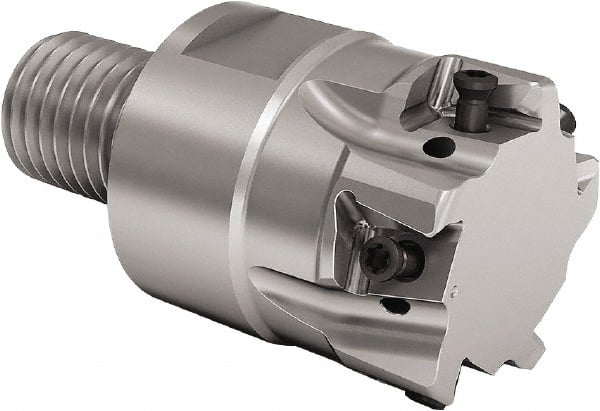

Seco - 32mm Cut Diam, 8mm Max Depth of Cut, 35mm OAL, Indexable Square Shoulder End Mill - LOEX Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant, Series Square T4-08
Item #: 42863225
Brand: Seco
Model #: 82198
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 35.00 |
| Overall Length/Projection (Decimal Inch) | 1.3780 |
| Lead Angle | 90 |
| Series | Square T4-08 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.94 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Head Length (mm) | 35.00 |
| Weldon Flat | No |
| Insert Compatibility | LOEX |
| Shank Length (mm) | 35.00 |
| Maximum RPM | 14600 |
| Toolholder Material | Steel |
