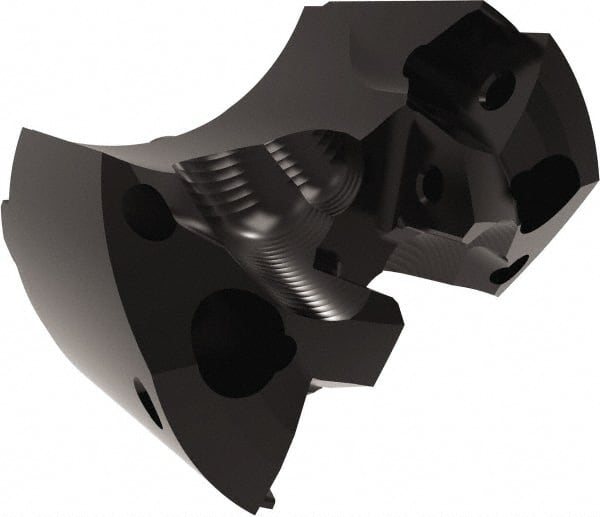

Allied Machine and Engineering - Series APX 44, 46.83mm Max Diam Pilot Insert Drill Head - GEN3SYS 22 Pilot Drill, 15/16" Pilot Drill Diam, 2 Nonpilot Inserts
Item #: 42911818
Brand: Allied Machine and Engineering
Model #: V4422D-0127
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 44 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 46.83 |
| Maximum Drill Diameter (Decimal Inch) | 1.8438 |
| Pilot Drill Diameter (Decimal Inch) | 0.9375 |
| Number of Non-Pilot Inserts | 2 |
| Pilot Drill Style | GEN3SYS 22 |
| Drill Head Style | V4422D |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
