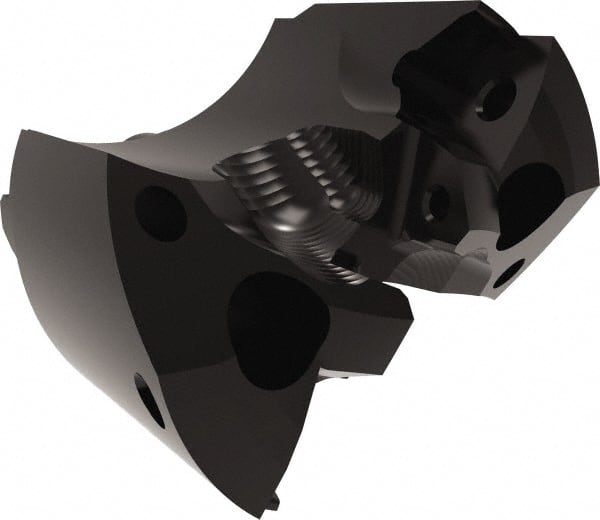

Allied Machine and Engineering - Series APX 38, 40mm Max Diam Pilot Insert Drill Head - GEN3SYS 17 Pilot Drill, 11/16" Pilot Drill Diam, 2 Nonpilot Inserts
Item #: 42917278
Brand: Allied Machine and Engineering
Model #: V3817D-40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 38 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Pilot Drill Diameter (Decimal Inch) | 0.6875 |
| Number of Non-Pilot Inserts | 2 |
| Pilot Drill Style | GEN3SYS 17 |
| Drill Head Style | V3817D |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
