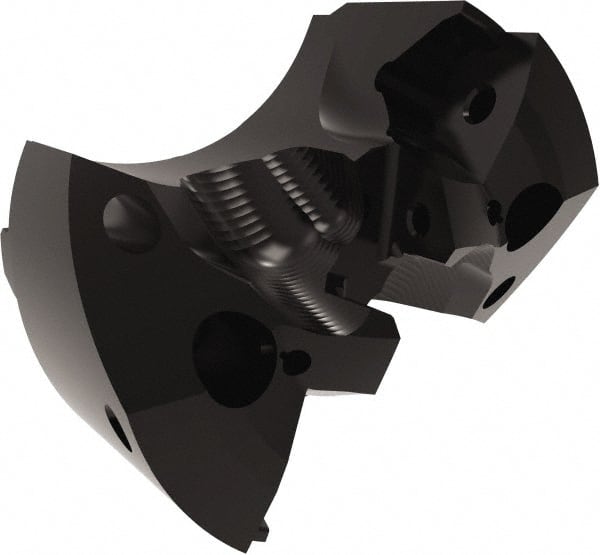

Allied Machine and Engineering - Series APX 51, 53.18mm Max Diam Pilot Insert Drill Head - GEN3SYS 20 Pilot Drill, 27/32" Pilot Drill Diam, 2 Nonpilot Inserts
Item #: 42917500
Brand: Allied Machine and Engineering
Model #: V5120D-0203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 51 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 53.18 |
| Maximum Drill Diameter (Decimal Inch) | 2.0938 |
| Pilot Drill Diameter (Decimal Inch) | 0.8438 |
| Number of Non-Pilot Inserts | 2 |
| Pilot Drill Style | GEN3SYS 20 |
| Drill Head Style | V5122D |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
