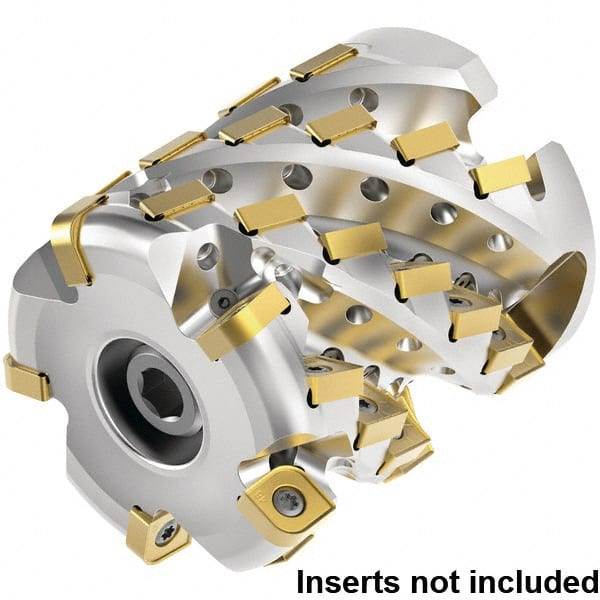

Kennametal - 15 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 50.89mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 75mm High, SNHJ1206.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 42954123
Brand: Kennametal
Model #: 6524712
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9690 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 75.00 |
| Insert Compatibility | SNHJ1206.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 50.89 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HU8X |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 49.00 |
| Maximum Body Diameter (Decimal Inch) | 1.8454 |
| Maximum RPM | 16400 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Complete Insert Compatibility | SNHJ120624SNGDH; SNHJ120608SNGDH |
| Toolholder Material | Steel |
