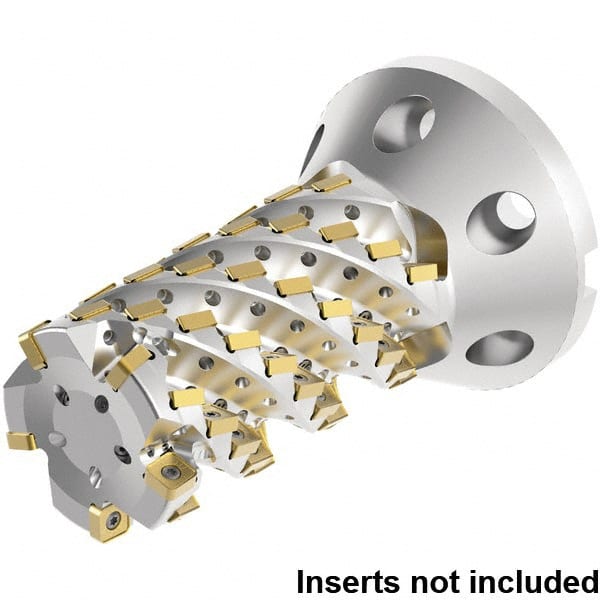

Kennametal - 56 Inserts, 2" Cut Diam, 4-5/8" Arbor Diam, 4.2236" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 7-1/2" High, SNHJ1004.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 42962092
Brand: Kennametal
Model #: 6366567
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 4-5/8 |
| Lead Angle | 0 |
| Overall Height (Inch) | 7-1/2 |
| Insert Compatibility | SNHJ1004.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 4.2236 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 56 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HU8X |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 1.8846 |
| Maximum RPM | 16000 |
| Coolant Hole Diameter (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | SNHJ100424SNGDH; SNHJ100408SNGDH |
| Toolholder Material | Steel |
