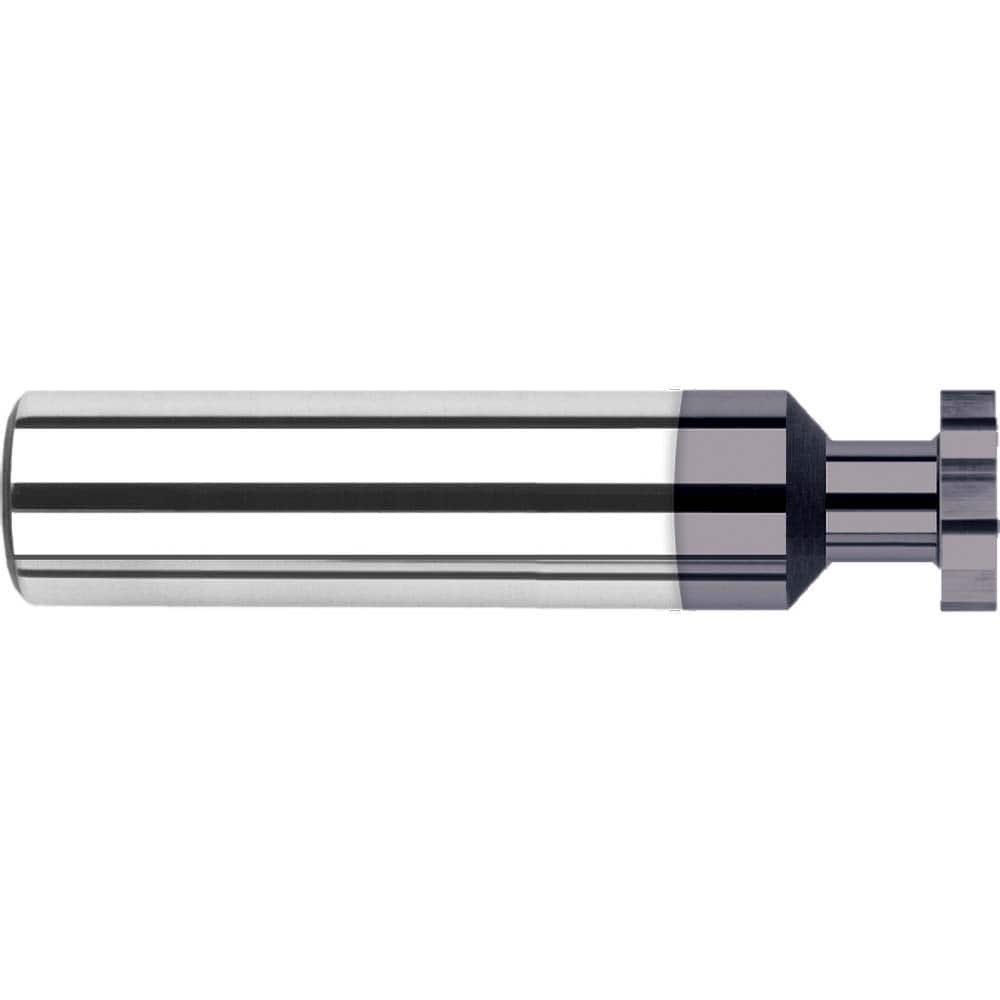

Harvey Tool - ANSI 302-1/2 (Old Std # 207) 5/16" Cut Diam, 3/32" Cut Width, 5/16" Shank, Straight-Tooth Woodruff Keyseat Cutter
Item #: 42988162
Brand: Harvey Tool
Model #: 973450-C3
Product Specifications
| Connection Type | Shank |
| Old Standard Number | 207 |
| American Standard Number (ANSI) | 302-1/2 |
| Cutting Diameter (Inch) | 5/16 |
| Cutting Diameter (Decimal Inch) | 0.3125 |
| Cutting Width (Inch) | 3/32 |
| Cutting Width (Decimal Inch) | 0.0930 |
| Tooth Configuration | Straight |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Number of Teeth | 6 |
