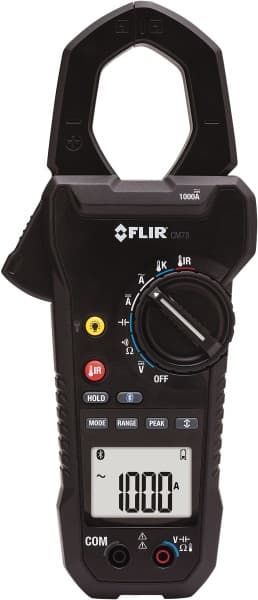

FLIR - CM78-NIST, CAT IV, Digital True RMS Wireless Clamp Meter with 1.45" Clamp On Jaws - 1000 VAC/VDC, 1000 AC/DC Amps, Measures Voltage, Capacitance, Current, Frequency, Resistance
Item #: 42999003
Brand: FLIR
Model #: CM78-NIST
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Clamp Meter Type | Wireless |
| Measures | Voltage; Capacitance; Current; Frequency; Resistance |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 1.4500 |
| CAT Rating | CAT IV |
| Maximum DC Voltage | 1000 |
| Maximum AC Voltage | 1000 |
| Maximum DC Current (A) | 1000 |
| Maximum AC Current (A) | 1000 |
| Maximum Resistance (Megohms) | 40 |
| Temp Measurement Range w/Included Probe (F) | -20 - 518 |
| Temp Measurement Range w/Included Probe (C) | -20 - 270 |
| Maxium Capacitance (mF) | 4.000 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Additional Functions | Min/Max; Average; Auto Power Off; Relative; Peak Hold; Bright White LED Backlight; Battery Status |
| Includes | Test Leads; (6) AAA Batteries; Manual; CD Translations |
| Frequency | 4Hz |
| Battery Type | AAA |
| Standards Met | CE |
| PSC Code | 6625 |
