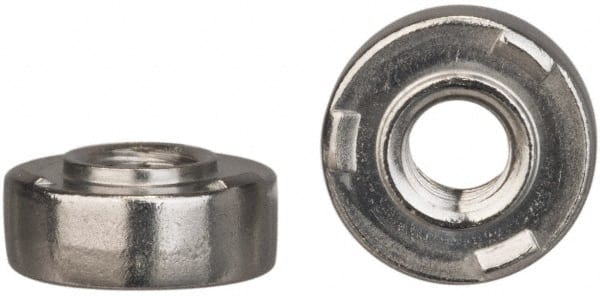

Electro Hardware - M5x0.80, 11.1mm Body Diam, Round Head, Grade 303 Stainless Steel Weld Nut - 3.8mm Pilot Height, 0.77mm Min Panel Thickness, Passivated Finish
Item #: 43258417
Brand: Electro Hardware
Model #: EWNS-M5-0
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Head Shape | Round |
| System of Measurement | Metric |
| Thread Size (mm) | M5x0.80 |
| Body Diameter (mm) | 11.10 |
| Pilot Height (mm) | 3.80 |
| Minimum Panel Thickness (mm) | 0.77 |
| Material | Stainless Steel |
| Pilot Hole Diameter (mm) | 6.40 |
| Number of Projections | 3 |
| Finish/Coating | Passivated |
| Material Grade | 303 |
