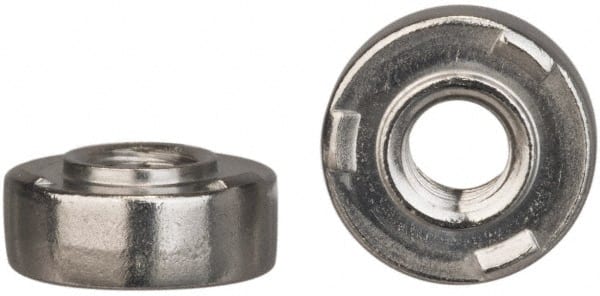

Electro Hardware - M3x0.50, 7.95mm Body Diam, Round Head, Grade 303 Stainless Steel Weld Nut - 1.5mm Pilot Height, 0.75mm Min Panel Thickness, Passivated Finish
Item #: 43258441
Brand: Electro Hardware
Model #: EWNS-M3-0
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Head Shape | Round |
| System of Measurement | Metric |
| Thread Size (mm) | M3x0.50 |
| Body Diameter (mm) | 7.95 |
| Pilot Height (mm) | 1.50 |
| Minimum Panel Thickness (mm) | 0.75 |
| Material | Stainless Steel |
| Pilot Hole Diameter (mm) | 4.40 |
| Number of Projections | 3 |
| Finish/Coating | Passivated |
| Material Grade | 303 |
