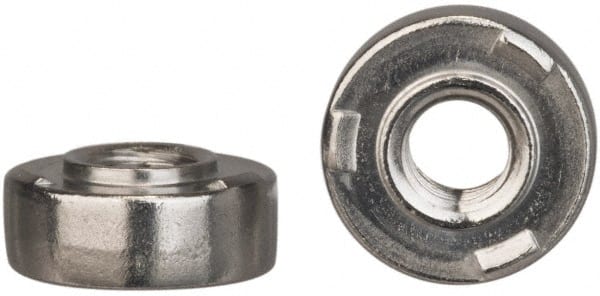

Electro Hardware - #10-32, 0.44" Body Diam, Round Head, Grade 303 Stainless Steel Weld Nut - 0.155" Pilot Height, 0.03" Min Panel Thickness, Passivated Finish
Item #: 43258508
Brand: Electro Hardware
Model #: EWNS-032-0
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Head Shape | Round |
| System of Measurement | Inch |
| Thread Size (Inch) | #10-32 |
| Body Diameter (Decimal Inch) | 0.4400 |
| Pilot Height (Decimal Inch) | 0.1550 |
| Minimum Panel Thickness (Decimal Inch) | 0.0300 |
| Material | Stainless Steel |
| Pilot Hole Diameter (Decimal Inch) | 0.2500 |
| Number of Projections | 3 |
| Finish/Coating | Passivated |
| Material Grade | 303 |
