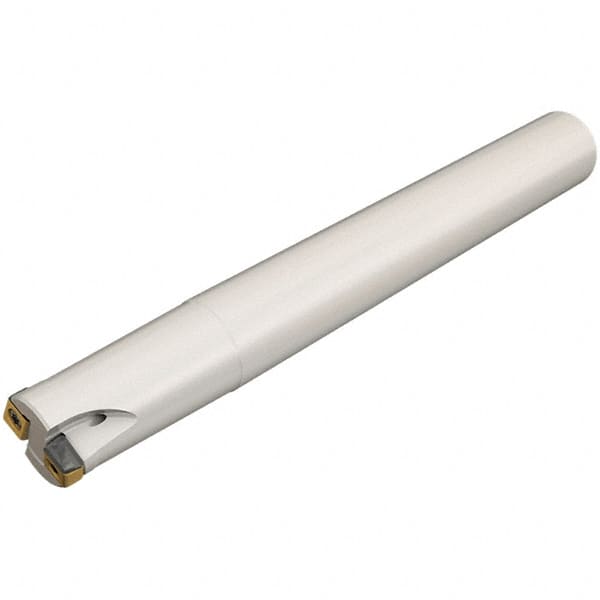

Iscar - 1" Cut Diam, 1" Max Depth of Cut, 1" Shank Diam, Indexable Plunge End Mill - Straight Shank, Through Coolant, Series TangPlunge
Item #: 43319714
Brand: Iscar
Model #: 3105872
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 4 |
| Series | TangPlunge |
| Number of Flutes | 4 |
| Overall Length/Projection (Decimal Inch) | 5.0000 |
| Head Length (Decimal Inch) | 2.0000 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 3.0000 |
| Weldon Flat | Yes |
| Through Coolant | Through Coolant |
| End Mill Type | End Mill |
