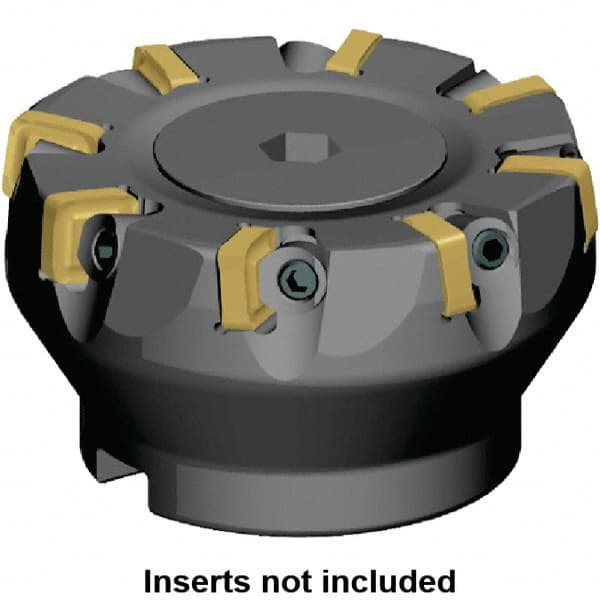

Kennametal - 82mm Cut Diam, 27mm Arbor Hole, 5mm Max Depth of Cut, 6° Indexable Chamfer & Angle Face Mill - 8 Inserts, SNXF 1204... Insert, Right Hand Cut, 8 Flutes, Series KSSR
Item #: 43375781
Brand: Kennametal
Model #: 3331279
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 82.00 |
| Cutting Diameter (Decimal Inch) | 3.2283 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 6 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SNXF 1204... |
| Series | KSSR |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Wedge |
| Cutter Style | KSSR |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Maximum Body Diameter (Decimal Inch) | 3.0970 |
| Maximum RPM | 6000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNXF 1204ZNSNGP |
