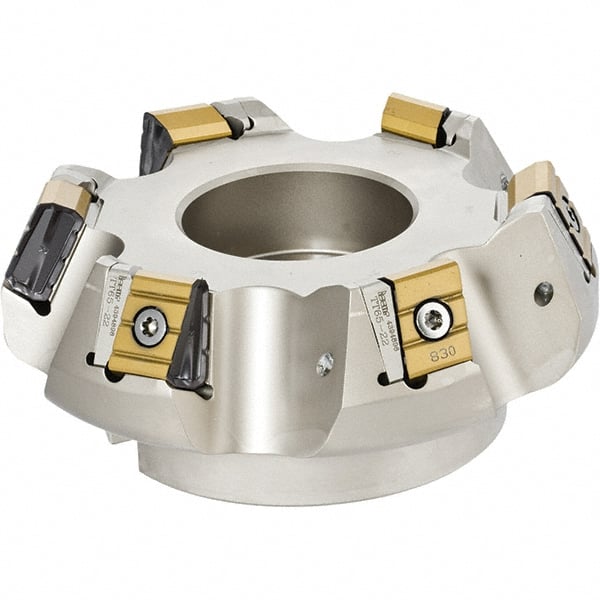

Iscar - 1.86" Cut Diam, 2-1/2" Arbor Hole, 3/4" Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 10 Inserts, T465 LN.T 2212ZN.. Insert, Right Hand Cut, Series Helitang
Item #: 43398171
Brand: Iscar
Model #: 3181043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 10.8600 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 65 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | T465 LN.T 2212ZN.. |
| Series | Helitang |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | T465 FLN-22ST |
| Hub Diameter (Decimal Inch) | 5.9100 |
| Keyway Width (Inch) | 1 |
| Keyway Width (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.1000 |
| Counterbore Diameter (Decimal Inch) | 4.0000 |
| Complete Insert Compatibility | T465 LNHT 2212ZN-R; T465 LNHT 2212ZNTL; T465 LNHT 2212ZNTR; T465 LNMT 2212ZNTR-CS |
