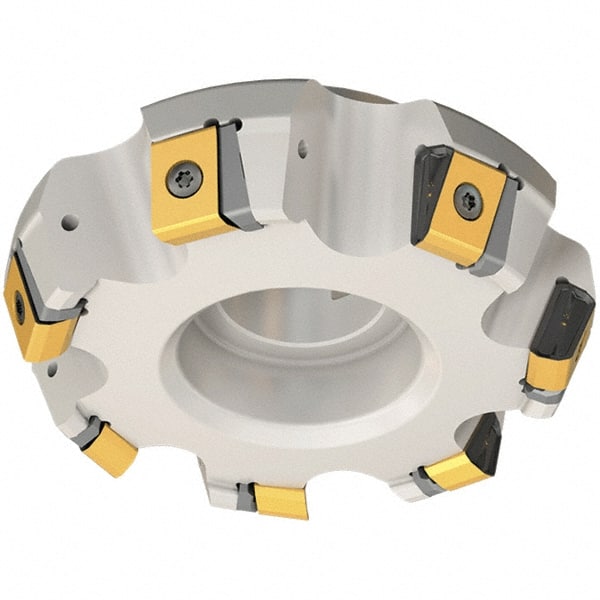

Iscar - 12.86" Cut Diam, 2-1/2" Arbor Hole, 3/4" Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 12 Inserts, T465 LN.T 2212 Insert, Right Hand Cut, 12 Flutes, Series Helitang
Item #: 43415694
Brand: Iscar
Model #: 3181121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 12.8600 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 65 |
| Overall Height (Decimal Inch) | 3.1500 |
| Insert Compatibility | T465 LN.T 2212 |
| Series | Helitang |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Clamp |
| Cutter Style | T465 FLN-22ST |
| Number of Flutes | 12 |
| Maximum Body Diameter (Decimal Inch) | 12.8600 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.7500 |
| Complete Insert Compatibility | T465 LNHT/LNMT 2212 |
