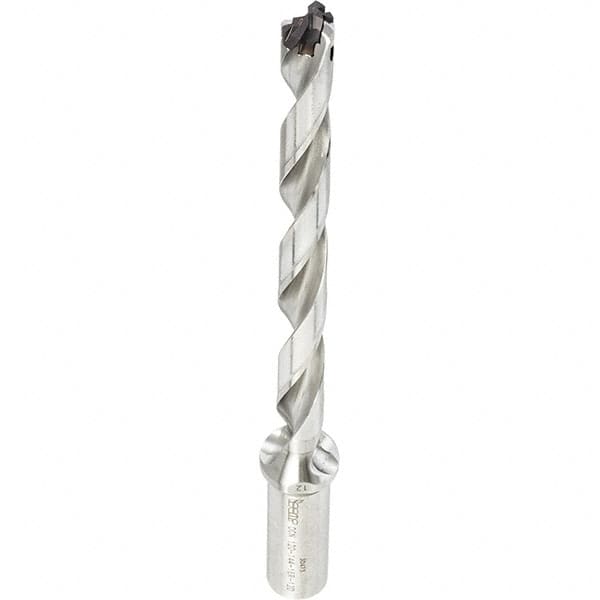

Iscar - 0.571" to 0.587" Diam, 12xD, 6.85" Max Depth, 0.63" Shank Diam, 9.61" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 14 Seat Size, 43429463 Toolholder, Series SumoCham
Item #: 43429463
Brand: Iscar
Model #: 3203238
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5710 |
| Maximum Drill Diameter (Decimal Inch) | 0.5870 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 6.8500 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 7.6400 |
| Overall Length (Decimal Inch) | 9.6100 |
| Shank Length (Decimal Inch) | 1.9700 |
