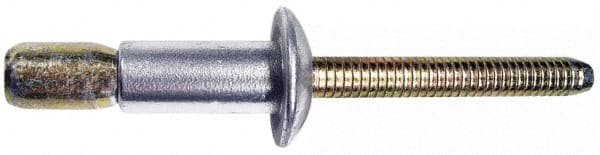

Marson - Protruding Head Stainless Steel Structural Blind Rivet - Stainless Steel Mandrel, 0.08" to 3/8" Grip, 0.53" Head Diam, 0.261" to 0.272" Hole Diam, 0.56" Length Under Head, 1/4" Body Diam
Item #: 43473289
Brand: Marson
Model #: MGLP-U8-6-PKT
Exact Tooling IR#: 04
Features and Benefits
Structural rivets are used in structural, limited-clearance applications. They have high strength properties and good resistance to corrosion and tampering.
Protruding heads slightly extend out of the workpiece material.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Structural |
| Head Type | Protruding |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.0800 |
| Maximum Grip (Decimal Inch) | 0.3750 |
| Head Diameter (Decimal Inch) | 0.5300 |
| Minimum Hole Diameter (Decimal Inch) | 0.2610 |
| Maximum Hole Diameter (Decimal Inch) | 0.2720 |
| Length Under Head (Decimal Inch) | 0.5600 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Body Diameter (Inch) | 1/4 |
| Shear Strength (Lb.) | 2350 (Minimum); 2500 (Typical) |
| Tensile Strength (Lb.) | 1800 (Minimum); 2000 (Typical) |
| Head Height (Decimal Inch) | 0.1200 |
