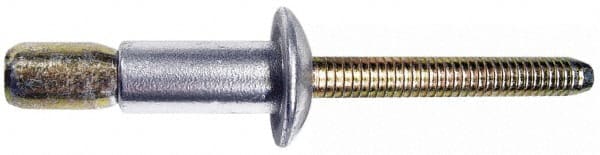

Marson - Protruding Head Stainless Steel Structural Blind Rivet - Stainless Steel Mandrel, 0.214" to 0.437" Grip, 0.385 to 0.392" Head Diam, 0.191" to 0.201" Hole Diam, 0.582" Length Under Head, 3/16" Body Diam
Item #: 43473297
Brand: Marson
Model #: MGLP-U6-7-PKT
Exact Tooling IR#: 04
Features and Benefits
Structural rivets are used in structural, limited-clearance applications. They have high strength properties and good resistance to corrosion and tampering.
Protruding heads slightly extend out of the workpiece material.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Structural |
| Head Type | Protruding |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.2140 |
| Maximum Grip (Decimal Inch) | 0.4370 |
| Head Diameter (Decimal Inch) | 0.3850 to 0.3920 |
| Minimum Hole Diameter (Decimal Inch) | 0.1910 |
| Maximum Hole Diameter (Decimal Inch) | 0.2010 |
| Length Under Head (Decimal Inch) | 0.5820 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 1300 (Minimum); 1400 (Typical) |
| Tensile Strength (Lb.) | 1100 (Typical); 950 (Minimum) |
| Head Height (Decimal Inch) | 0.085 to 0.101 |
