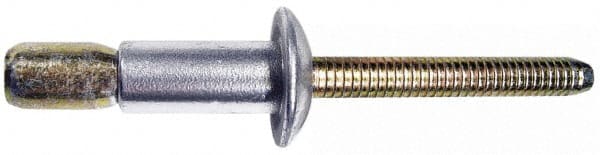

Marson - Countersunk Head Aluminum Structural Blind Rivet - Aluminum Mandrel, 0.415" to 0.725" Grip, 0.41" Head Diam, 0.415" to 0.725" Hole Diam, 0.825" Length Under Head, 1/4" Body Diam
Item #: 43473354
Brand: Marson
Model #: MGL100-B8-12PKT
Exact Tooling IR#: 04
Features and Benefits
Structural rivets are used in structural, limited-clearance applications. They have high strength properties and good resistance to corrosion and tampering.
Countersunk head rivets lie flush against the workpiece material and have large bearing surfaces.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Structural |
| Head Type | Countersunk |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.4150 |
| Maximum Grip (Decimal Inch) | 0.7250 |
| Head Diameter (Decimal Inch) | 0.4100 |
| Minimum Hole Diameter (Decimal Inch) | 0.4150 |
| Maximum Hole Diameter (Decimal Inch) | 0.7250 |
| Length Under Head (Decimal Inch) | 0.8250 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Body Diameter (Inch) | 1/4 |
| Shear Strength (Lb.) | 1300.00 |
| Tensile Strength (Lb.) | 890 (Minimum); 950 (Typical) |
| Head Height (Decimal Inch) | 0.0900 |
