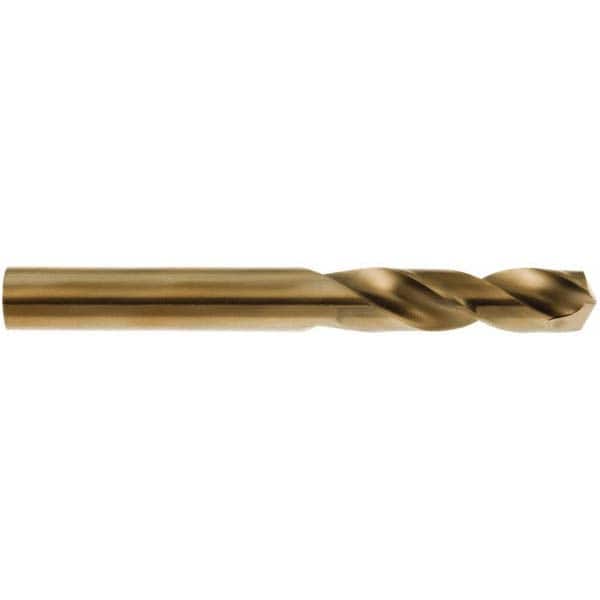

Screw Machine Length Drill Bit: 0.4219″ Dia, 135 °, Cobalt Oxide & Straw Finish, Spiral Flute
Item #: 43481944
Brand: Hertel
Model #: 42211
Product Specifications
| Drill Bit Size (Inch) | 27/64 |
| Tool Material | Cobalt |
| Coating/Finish | Oxide; Straw |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.4219 |
| Overall Length (mm) | 85.73 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 2.0000 |
| Flute Length (Inch) | 2 |
| Flute Length (mm) | 50.80 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Material Grade | M35 |
