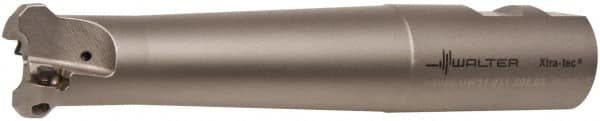

Walter - 31.75mm Cut Diam, 0.1181mm Max Depth of Cut, 1-1/4" Shank Diam, 7" OAL, Indexable Chamfer & Angle End Mill - ODM. 0504.., ODH. 0504.. Insert Style, Weldon Shank
Item #: 43486794
Brand: Walter
Model #: 5636987
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1 1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Style | ODM. 0504..; ODH. 0504.. |
| Maximum Depth of Cut (mm) | 0.1181 |
| Number of Cutter Inserts | 2 |
| Toolholder Style | F4080 |
| ISO Number | F4080.UW31.031.Z02.03 |
