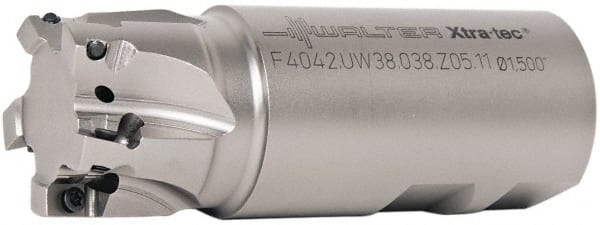

Walter - 38mm Cut Diam, 11mm Max Depth of Cut, 1-1/2" Shank Diam, 4.065" OAL, Indexable Square Shoulder End Mill - AD.T 1204.. Inserts, Weldon Shank, 90° Lead Angle
Item #: 43486992
Brand: Walter
Model #: 5051590
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.00 |
| Cutting Diameter (Decimal Inch) | 1.4961 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 4.0650 |
| Lead Angle | 90 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number of Cutter Inserts | 5 |
| Cutter Style | F4042 |
| Insert Compatibility | AD.T 1204.. |
