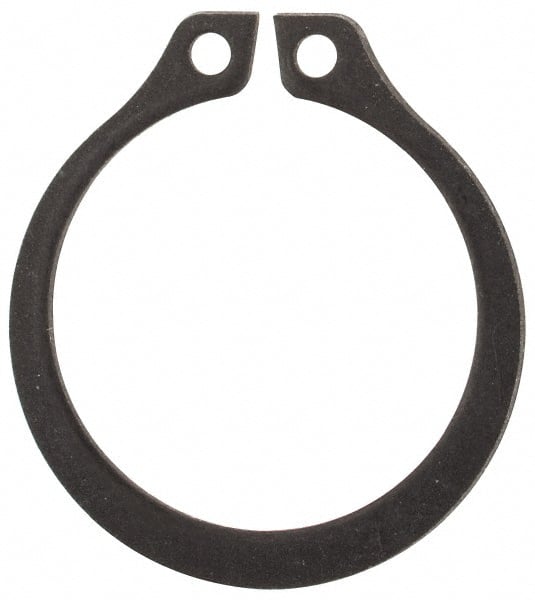

Rotor Clip - 0.588" Groove Diam, 5/8" Shaft Diam, Phosphate Steel, Snap External Retaining Rings - 0.039" Groove Width, 0.018" Groove Depth, 0.035" Ring Thickness, Grade 1060-1090
Item #: 43488113
Brand: Rotor Clip
Model #: SH-62ST PA B100
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 15.88 |
| Shaft Diameter (Inch) | 5/8 |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Groove Diameter (Decimal Inch) | 0.5880 |
| Free Diameter (Decimal Inch) | 0.5790 |
| Free Outside Diameter (Decimal Inch) | 0.9000 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0390 |
| Groove Depth (Decimal Inch) | 0.0180 |
| Ring Thickness (Decimal Inch) | 0.0350 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.010 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 30N 66-71 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
