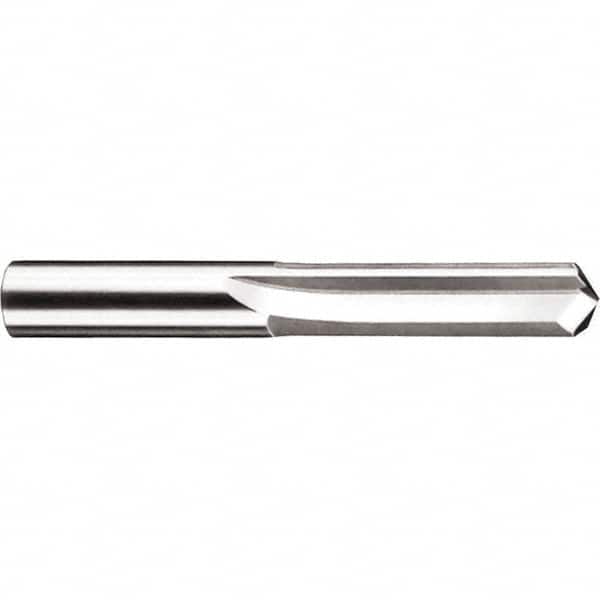

SGS - 1.5mm, 140° Point, Solid Carbide Straight Flute Drill Bit
Item #: 58992751
Brand: SGS
Model #: 69081
Features and Benefits
Straight flute drills are used for drilling holes in hardened and high strength steels over 50 HRC. The straight flute allows for deep hole drilling.
Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 140 |
| Drill Bit Size (mm) | 1.50 |
| Drill Bit Size (Decimal) | 0.0591 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiCN |
| Overall Length (mm) | 32.00 |
| Overall Length (Decimal Inch) | 1.2598 |
| Through Coolant | No |
| Flute Length (mm) | 9.00 |
| Flute Length (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 1.50 |
| Shank Diameter (Decimal Inch) | 0.0591 |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Length (mm) | 23.00 |
| Shank Length (Decimal Inch) | 0.9055 |
| Flute Length x Diameter Ratio | 3xD |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series/List | 106 |
