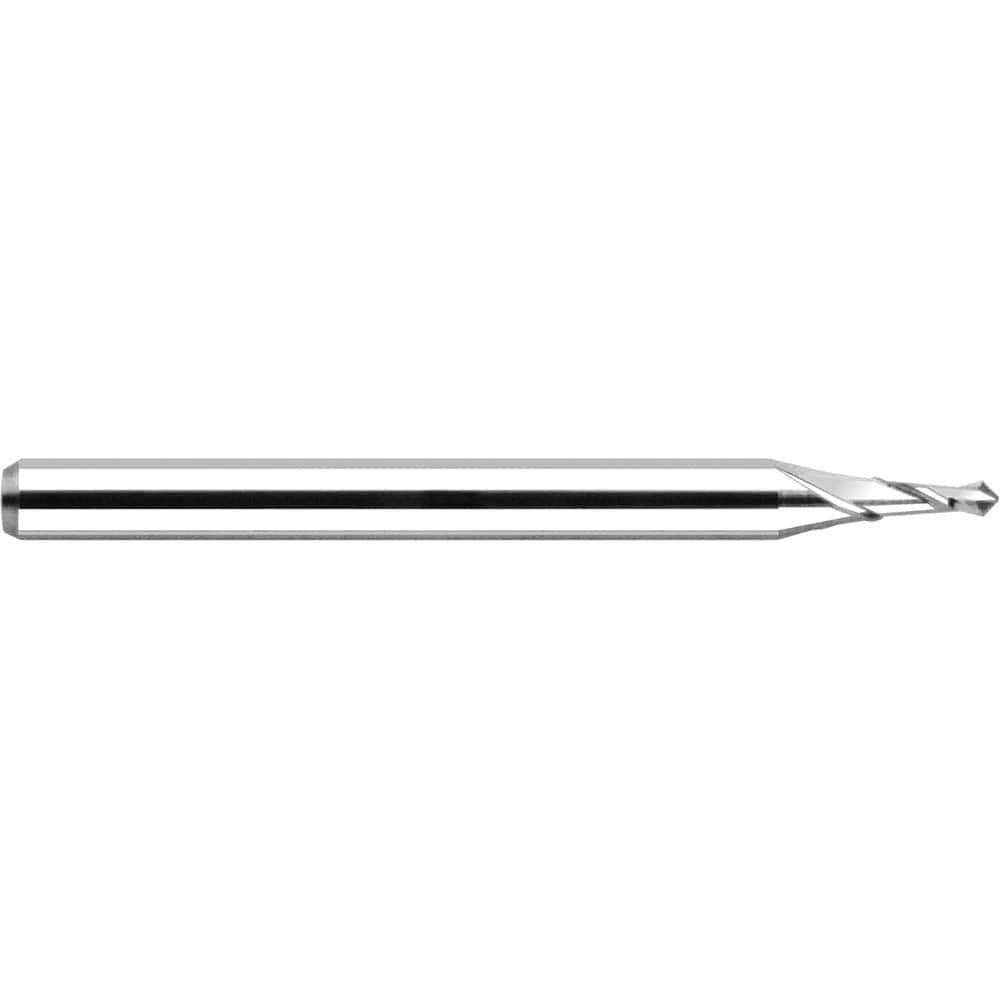

120° 3/16″ Diam 2″ OAL 2-Flute Solid Carbide Spotting Drill 5/8″ Flute Length, 3/16″ Shank Diam
Item #: 43635929
Brand: Harvey Tool
Model #: 38212
Product Specifications
| Drill Point Angle | 120 |
| Cutting Diameter (Inch) | 3/16 |
| Cutting Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Inch) | 2 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Length (Inch) | 5/8 |
| Flute Length (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Point Type | Harvey Type II |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thickness | 0.0130 |
