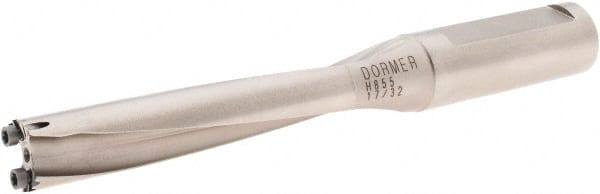

DORMER - 13 to 13.49mm Diam, 5xD, 5/8" Shank Diam, 74mm Flute, 140mm OAL, Replaceable Tip Drill - H855 Toolholder, Series H855
Item #: 43636133
Brand: DORMER
Model #: 0034132
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | H855 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | H855 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 9.70 |
| Tip Length (Decimal Inch) | 0.3822 |
| Flute Length (mm) | 74.00 |
| Flute Length (Decimal Inch) | 2.9156 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5160 |
| Toolholder Material | High Speed Steel |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8912 |
