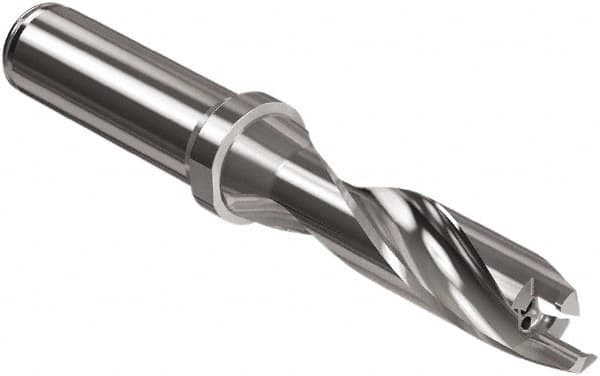

Seco - 15 to 15.99mm Diam, 3xD, 48mm Max Depth, 5/8" Shank Diam, 2.291" Flute, 4.772" OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 43666023
Brand: Seco
Model #: 40082
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.8898 |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 2.2910 |
| Body Length (Decimal Inch) | 2.8820 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 4.7720 |
| Shank Length (Decimal Inch) | 1.8900 |
