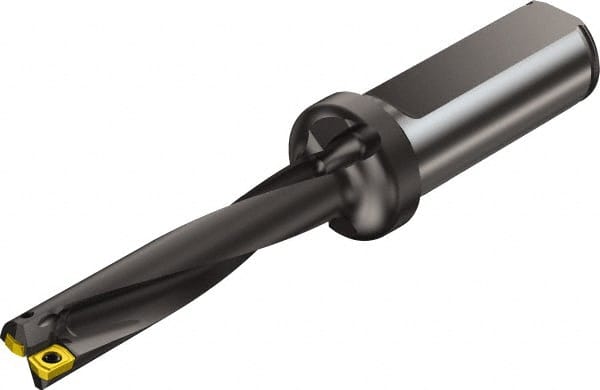

Sandvik Coromant - 143mm Max Drill Depth, 5xD, 28mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Flange Shank
Item #: 43672427
Brand: Sandvik Coromant
Model #: 5765518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 28.00 |
| Drill Diameter (Decimal Inch) | 1.1024 |
| Maximum Drill Depth (mm) | 143.00 |
| Maximum Drill Depth (Decimal Inch) | 5.6299 |
| Shank Type | Flange |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Diameter (mm) | 29.20 |
| Overall Length/Projection (mm) | 225.00 |
| Overall Length/Projection (Decimal Inch) | 8.8583 |
| Insert Compatibility | 880-050305H-C-GM; 880-0503W05H-P-GM |
| Flute Length (mm) | 140.00 |
| Flute Length (Decimal Inch) | 5.5118 |
| Body Length (Decimal Inch) | 6.4776 |
| Body Length (mm) | 164.53 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.60 |
