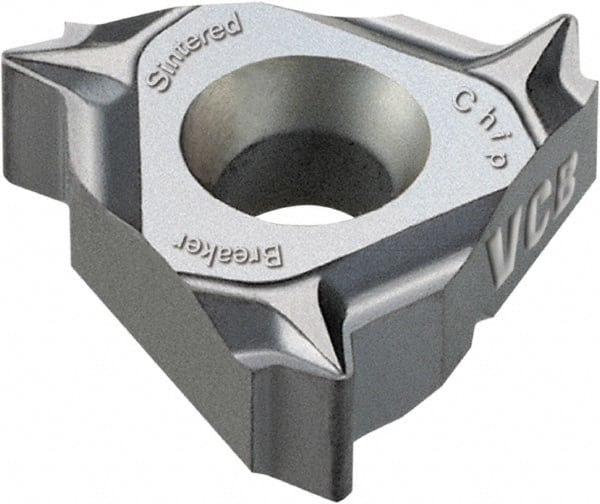

Vargus - 3JIR Internal Right Hand 11.5 NPT Laydown Threading Insert - Grade VCB, TiAlN Coated Carbide, 9.53mm Inscribed Circle
Item #: 43708742
Brand: Vargus
Model #: 53593
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 3JIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | NPT |
| Material Grade | Micrograin |
| Manufacturer's Grade | VCB |
| Threads Per Inch | 11.5 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.60 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAlN |
| Coating Process | PVD |
| Number of Teeth Per Side | 1 |
