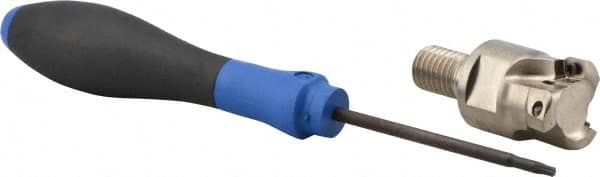

Seco - 1" Cut Diam, 0.03" Max Depth, M12 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, LP.. 06 Insert, R217.21 Toolholder, Through Coolant
Item #: 43753805
Brand: Seco
Model #: 71013
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0300 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Number of Cutter Inserts | 3 |
| Insert Style | LP.. 06 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Minimum Cutting Diameter (Decimal Inch) | 0.6600 |
| Maximum RPM | 30000 |
| Through Coolant | Through Coolant |
