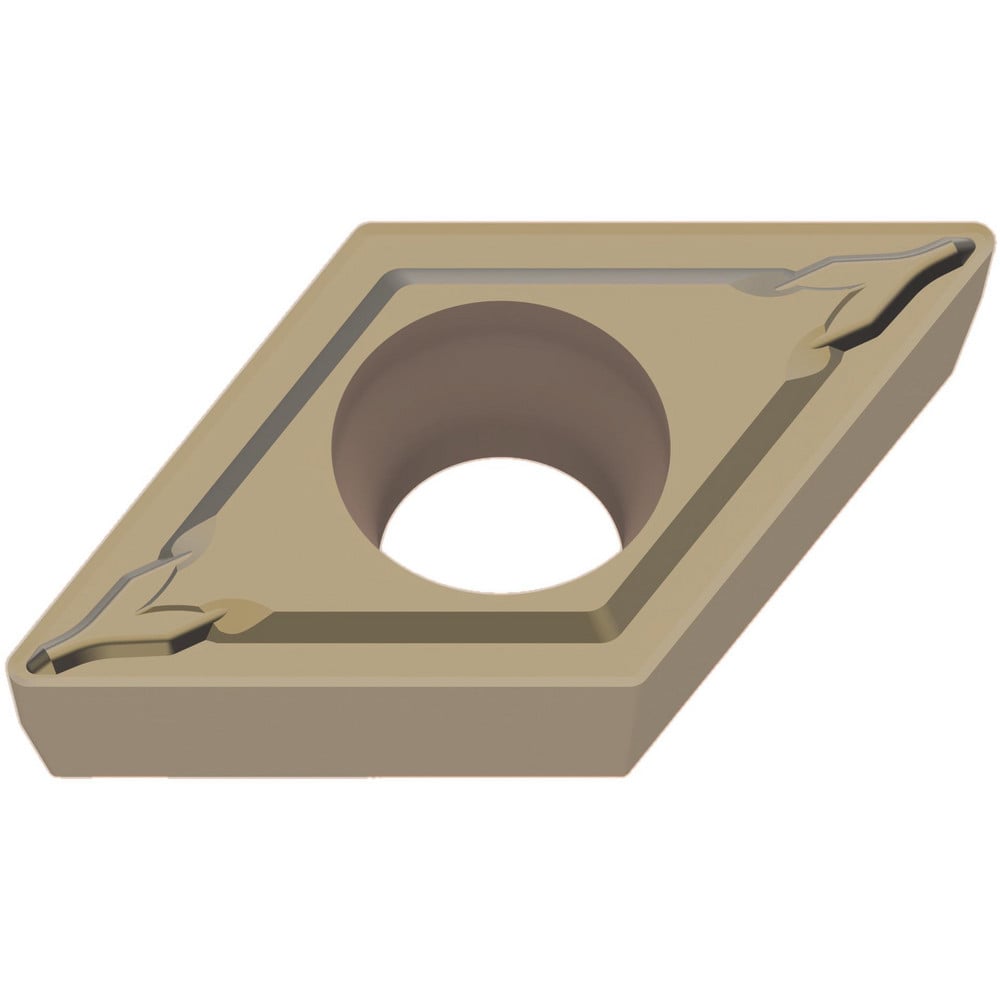

Turning Insert: DCMT32.52LM MC7025, Carbide
Item #: 01337997
Brand: Mitsubishi
Model #: 659219
Product Specifications
| ANSI Insert Code | DCMT32.52 |
| ISO Insert Code | DCMT |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 55 |
| Manufacturer Grade | MC7025 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1562 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | M |
| Chip Breaker | LM |
| ANSI Size Code | 32.52 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
