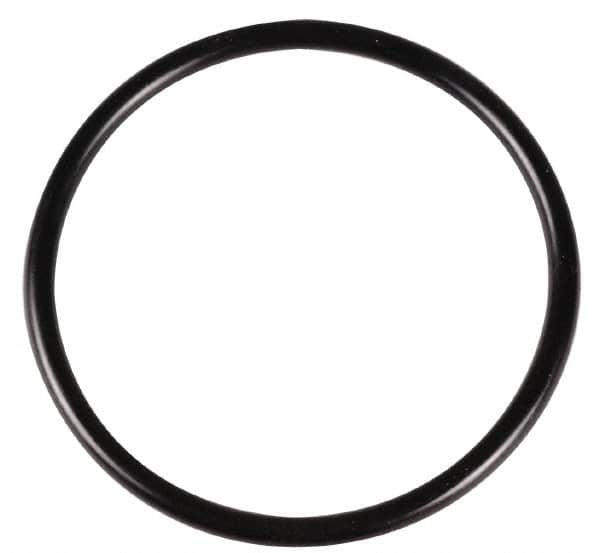

Value Collection - 1-1/4" ID x 1-1/2" OD, EPR O-Ring - 1/8" Thick, Round Cross Section
Item #: 43762129
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
EPR is an ethylene-propylene copolymer that offers excellent resistance to fluids used in commercial aircraft hydraulic systems. They also are recommended for hot water, steam, and phosphate ester-type hydraulic fluids. Not recommended for petroleum fluids or diester lubricants.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | EPR |
| Dash Number | 218 |
| System of Measurement | Inch |
| Durometer (Shore A) | 70 |
| Inside Diameter (Inch) | 1-1/4 |
| Inside Diameter (Decimal Inch) | 1.2340 |
| Outside Diameter (Inch) | 1-1/2 |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Thickness (mm) | 3.53 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1390 |
| Maximum Temperature (F) | 300.000 |
| Minimum Temperature (F) | -65.000 |
| Additional Information | FDA, NSF 61 Approved |
