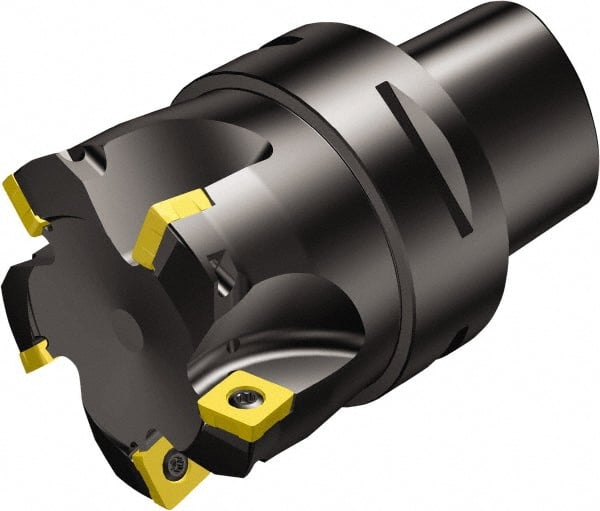

Sandvik Coromant - 6 Inserts, 51.9mm Cut Diam, 63mm Arbor Diam, 1.2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 110mm High, R210-090412M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 43853019
Brand: Sandvik Coromant
Model #: 5742622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 51.90 |
| Cutting Diameter (Decimal Inch) | 2.0433 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 10 |
| Overall Height (mm) | 110.00 |
| Overall Height (Decimal Inch) | 4.3307 |
| Insert Compatibility | R210-090412M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R210..Cx |
| Maximum Body Diameter (Decimal Inch) | 2.4787 |
| Maximum RPM | 21300 |
| ISO Number | R210066C609M |
| Complete Insert Compatibility | R210-090412M |
| Toolholder Material | Steel |
