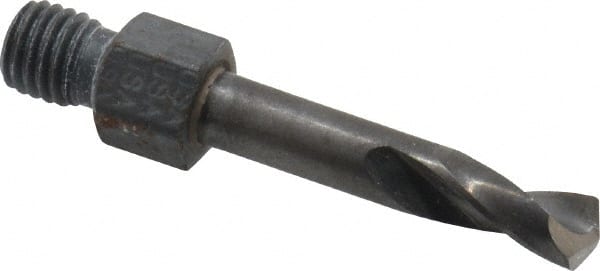

Hertel - 0.191" Drill Bit, Screw Machine, High Speed Steel, Threaded Shank Drill Bit
Item #: 48538151
Brand: Hertel
Model #:
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Oxide coating prevents chip building, galling and welding on the workpiece. It is commonly used on low-carbon metals, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Type | Short |
| Drill Bit Size (Wire) | #11 |
| Drill Bit Size (Decimal Inch) | 0.1910 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Point Type | Split Point |
| Overall Length (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Flute Length (Inch) | 9/16 |
| Through Coolant | No |
| Specification Designation | NAS |
| Shank Type | Hex |
| Shank Thread Size | 1/4-28 |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
