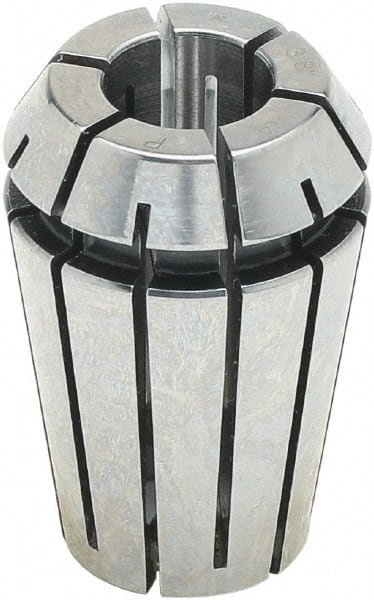

Parlec - 0.6475 to 0.6875" ER40 Collet - 0.0002" TIR, 1.811" OAL, 1.614" Overall Diam
Item #: 43909126
Brand: Parlec
Model #: 5UMER40-0687
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER40 |
| Size (Inch) | 11/16 |
| Size (Decimal Inch) | 0.6875 |
| TIR (Decimal Inch) | 0.000200 |
| Minimum Collet Capacity (Decimal Inch) | 0.6475 |
| Maximum Collet Capacity (Inch) | 11/16 |
| Maximum Collet Capacity (Decimal Inch) | 0.6875 |
| Overall Length (Decimal Inch) | 1.8110 |
| Overall Diameter (Decimal Inch) | 1.6140 |
| PSC Code | 5136 |
