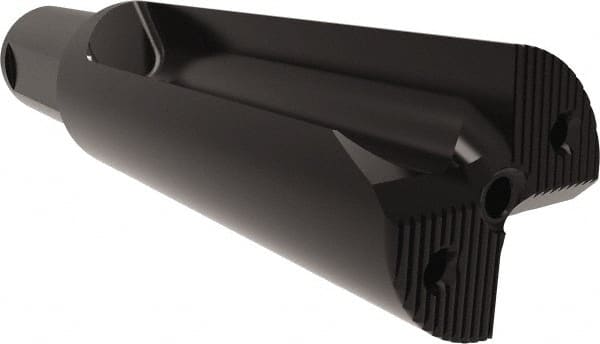

Allied Machine and Engineering - 127mm Max Drill Depth, 2.2xD, 50.8mm Diam, Indexable Insert Drill - 4 Inserts, 40mm Shank Diam, Straight Shank
Item #: 43935204
Brand: Allied Machine and Engineering
Model #: R36X22-40M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | R |
| Drill Diameter (mm) | 50.80 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (mm) | 127.00 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Shank Type | Straight |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.2xD |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.2000 |
| Maximum Drill Diameter (mm) | 55.88 |
| Overall Length/Projection (mm) | 219.20 |
| Overall Length/Projection (Decimal Inch) | 8.6299 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 5.8740 |
| Body Length (mm) | 149.20 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
