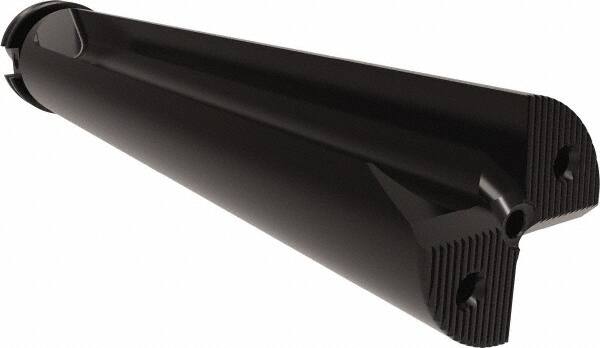

Allied Machine and Engineering - 11-3/4" Max Drill Depth, 4.5xD, 61mm Diam, Indexable Insert Drill - 2 Inserts, CAT40 Taper Shank
Item #: 43935436
Brand: Allied Machine and Engineering
Model #: R42X45-CV40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | R |
| Drill Diameter (mm) | 61.00 |
| Drill Diameter (Decimal Inch) | 2.4016 |
| Maximum Drill Depth (Decimal Inch) | 11.7500 |
| Maximum Drill Depth (Inch) | 11-3/4 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 4.5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.6000 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 14.1250 |
| Series | Revolution Drill |
