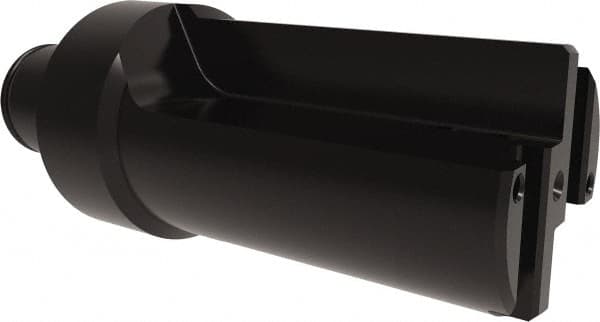

Allied Machine and Engineering - 4-3/4" Max Drill Depth, 2-1/2" Diam, Indexable Insert Drill - 2 Inserts, ABS63 Modular Connection Shank
Item #: 43935543
Brand: Allied Machine and Engineering
Model #: OP2-1S-ABS63
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | OP |
| Drill Diameter (Inch) | 2-1/2 |
| Drill Diameter (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (Decimal Inch) | 4.7500 |
| Maximum Drill Depth (Inch) | 4-3/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS63 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 3.0000 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 6.2500 |
| Series | Opening Drill |
