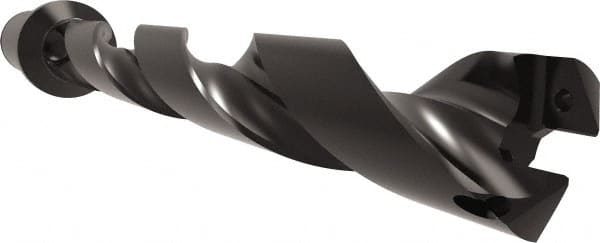

Allied Machine and Engineering - Series 32, 32 to 35mm Diam, 1-1/2" Diam Straight Shank with Flange, Helical Flute Spade Drill - 9-41/64" Max Depth, 11-23/32" Body Length, 14-13/32" OAL, Standard Length, Through Coolant
Item #: 43935873
Brand: Allied Machine and Engineering
Model #: 60732H-150C
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 32 |
| Minimum Drill Diameter (mm) | 32.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Diameter (mm) | 35.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.3780 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 14-13/32 |
| Overall Length (Decimal Inch) | 14.4063 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 9-41/64 |
| Maximum Drill Depth (Decimal Inch) | 9.6406 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 11-23/32 |
| Body Length (Decimal Inch) | 11.7188 |
| Shank Length (Inch) | 2-11/16 |
| Shank Length (Decimal Inch) | 2.6875 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
