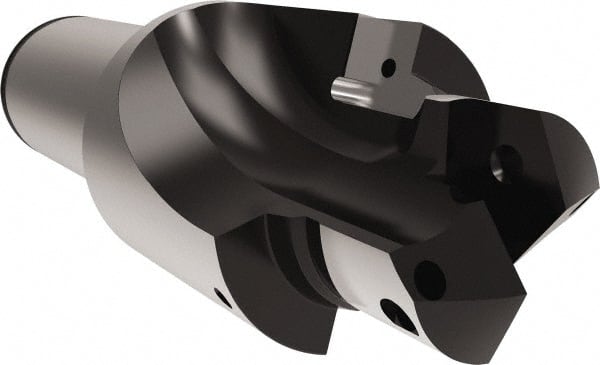

Allied Machine and Engineering - 1-3/16-12, 1.102" Pilot Diam, 1.783" Spotface Diam, 0.906" Pilot Length, Tube Dash 14, Indexable Porting Tool
Item #: 43936905
Brand: Allied Machine and Engineering
Model #: J1926-142-32FM
Product Specifications
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-3/16-12 |
| Tube Dash Number | 14 |
| Pilot Diameter (Decimal Inch) | 1.1020 |
| Spotface Diameter (Decimal Inch) | 1.7830 |
| Pilot Length (Decimal Inch) | 0.9060 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 1.2760 |
| Overall Length (Decimal Inch) | 4.9210 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 2.6400 |
| Shank Length (Decimal Inch) | 2.2800 |
| Spotface to Shoulder Length (Decimal Inch) | 1.5040 |
| Series | AccuPort 432 |
