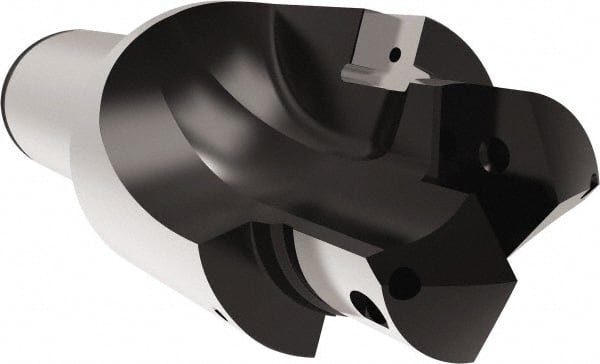

Allied Machine and Engineering - 1-5/16-12, 1.231" Pilot Diam, 1.907" Spotface Diam, 0.906" Pilot Length, Tube Dash 16, Indexable Porting Tool
Item #: 43936913
Brand: Allied Machine and Engineering
Model #: J1926-162-32FM
Product Specifications
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-5/16-12 |
| Tube Dash Number | 16 |
| Pilot Diameter (Decimal Inch) | 1.2310 |
| Spotface Diameter (Decimal Inch) | 1.9070 |
| Pilot Length (Decimal Inch) | 0.9060 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 1.4000 |
| Overall Length (Decimal Inch) | 4.9210 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 2.6400 |
| Shank Length (Decimal Inch) | 2.2800 |
| Spotface to Shoulder Length (Decimal Inch) | 1.4770 |
| Series | AccuPort 432 |
